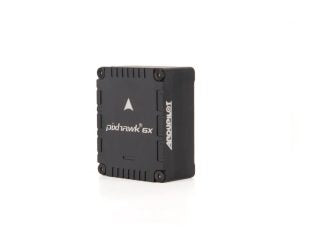

The Holybro Pixhawk 6X flight controller offers triple redundancy with three ICM-45686 IMU sensors and two barometer sensors, ensuring exceptional reliability in demanding applications. Designed for precision, the system includes advanced vibration isolation with durable materials, optimizing IMU damping with a higher resonance frequency. Ethernet integration enables seamless communication with mission computers, while temperature-controlled IMUs guarantee consistent performance. Compact and lightweight, the Pixhawk 6X is ideal for industrial and commercial drone applications.
Features:
- Redundancy: 3x ICM-45686 IMU sensors (±32g) with BalancedGyro™ and 2x barometer sensors for enhanced reliability.
- High-Performance Processor: Powered by STM32H753 processor, clocked at 480 MHz for fast computations.
- Modular Flight Controller: Separate IMU, FMU, and Base systems with 100-pin and 50-pin Pixhawk® Autopilot Bus connectors.
- Triple Redundancy Domains: Isolated sensor domains with separate buses and power control for improved reliability.
- Advanced Vibration Isolation: Durable material with higher spectrum resonance frequency to ensure precise sensor readings.
- Ethernet Interface: For high-speed integration with mission computers and transformerless operation using 50 Ohm termination resistors.
- Temperature-Controlled IMU: Keeps IMUs at an optimal working temperature for consistent performance.
Applications:
- Drones & UAVs for research and mapping.
- Autonomous Vehicles for land, air, and sea tasks.
- Precision Agriculture for monitoring and spraying.
- Robotics for custom autonomous systems.
- Surveillance & Security for real-time monitoring.
- Search & Rescue for disaster response
Package Includes:
1 x Pixhawk 6X Flight Controller Module
