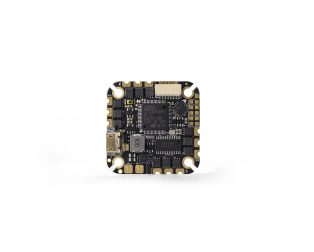

The flight controller is equipped with STM32 F722 main control and MPU6000 gyroscope, camera, receiver, HD/analog two-in-one direct plug-in interface
Features:
- Equipped with MPU6000 gyroscope
- Camera, receiver, HD/ analog two-in-one direct plug interface
- Support GPS
- Bl firmware is flashed by default, you can flash bluejay by yourself to improve flight efficiency
- Suitable for mainstream 2-4 inch ring machines and toothpick frames
- Supports input voltage up to 4-6s
Specifications:
- Product name: SPECTER 40A 4-6S AIO
- MCU: STM32F722
- MPU: MPU6000
- BEC: 5V2A
- OSD: Support
- LED: Support
- Bee Narrator: Support
- Continuous current: 40A
- Peak current: 50A (10S)
- Electrochemical protocol: DSHOT600, Oneshot, Multishot
- Flying control firmware: HGLRCF722AIO
- Electrochemical firmware: BLS (brushing Bluejay 96K)
- Electric: 8 -bit electrical
- Input voltage: 4-6S 14.8V-22.2V (lipo)
- Size: 34x34mm
- Install holes: 25.5×25.5mm.m2
- Weight: 9.8g
Package Includes:
1 x Specter 40A 4-6S AIO
1 x XT60 16AWG 100MM Gongtou Power Cable
1 x #30AWG, line length 60mm, single head SH1.0-3P/single head SH1.25-3P camera head line
1 x 30AWG, line length 70mm, double head SH1.0-4P receiving machine line
1 x 30AWG line length 70mm, single head SH1.0-7P/single head SH1.0-6p HD map passing line
1 x 30AWG line length 70mm, single head GH1.25-6P/single SH1.0-7P simulation map passing line
4 x m2*6.6 shock reduction column
4 x m2*12 black nickel screws
4 x self -lock M2 nut
